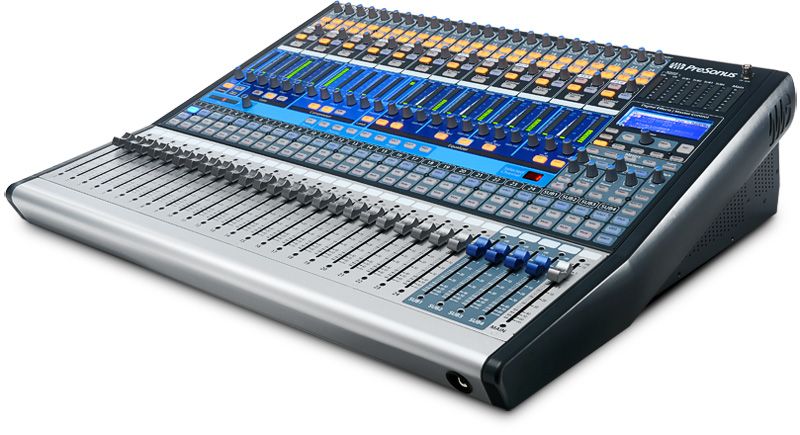

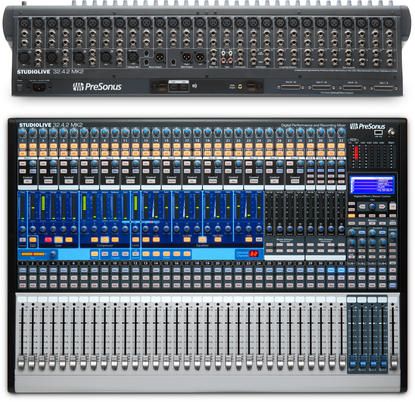

Цифровий мікшерний пульт PreSonus Studio Live 32.4.2

PreSonus Studio Live 32.4.2 - це цифровий мікшерний пульт професійної якості.

Технічні характеристики PreSonus Studio Live 32.4.2:

• Microphone Preamp 1-32 (XLR Balanced)
• Type XLR Female, Balanced
• Frequency Response to Direct Output 20 Hz to 40 kHz ± 0.5 dBu
• Frequency Response to Main Output 20 Hz to 20 kHz ± 0.5 dBu
• Input Impedance (Balanced) 1 k
• THD to Direct Output <0.007%, +4 dBu, 20-20 kHz, unity gain, unwtd
• THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• EIN to Direct Output +125 dB unwtd, +130 dB A-wtd
• S / N Ratio to Direct Output 105 dB
• S / N Ratio to Main Output 94 dB
• Common Mode Rejection Ratio 65 dB
• Gain Control Range -15 dB to +65 dB (± 1 dB)
• Maximum Input Level (unity gain) +22 dBu
• Phantom Power +48 VDC
• Line Inputs
• Type "TRS Female, balanced mono
• Frequency Response to Direct Outputs 10-40 kHz, 0 / -0.5 dBu
• Frequency Response to Main Outputs 20-20 kHz, ± 0.5 dBu
• Input Impedance 10 kOm
• THD to Direct Output <0.007%, +4 dBu, 20-20 kHz, unity gain, unwtd
• THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S / N Ratio to Direct Output 105 dB
• S / N Ratio to Main Output 94 dB
• Gain Control Range (± 1 dB) -20 dB to +20 dB
• Maximum Input level (unity gain) +22 dBu
• Tape Inputs
• Type RCA Female, unbalanced (stereo pair)
• Maximum Input Level +22 dBu
• Auxiliary Inputs
• Type "TRS Female, balanced (2 stereo pairs)
• Maximum Input Level +22 dBu
• Main Outputs
• Type Male, balanced (stereo pair); "TRS Female, balanced (stereo pair); XLR Male, balanced (mono)
• Rated Output Level +24 dBu
• Output Impedance 100 Om
• Aux Outputs
• Type "TRS Female, balanced (mono)
• Rated Output Level +18 dBu
• Output Impedance 100 Om
• Subgroup Outputs
• Type "TRS Female, balanced (mono)
• Rated Output Level +18 dBu
• Output Impedance 100 Om
• Tape Outputs
• Type RCA Female, unbalanced (stereo pair)
• Rated Output Level +18 dBu
• Output Impedance 100 Om
• Control Room Outputs
• Type "TRS Female, balanced (stereo pair)
• Rated Output Level +18 dBu
• Output Impedance 100?
• System Crosstalk
• Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -90 dBu
• Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -87 dBu
• Noise Gate / Expander
• Threshold Range -84 dB to 0 dB
• Attack Time 0.02s to 500 ms / 0.5 ms
• Release Time 0.05s to 2s
• Expander Attenuation Range 2: 1
• Gate Attenuation Range -84 dB to 0 dB /?
• Key Listen Filter 2nd-order resonant bandpass; Q = 0.7; OFF, 40 Hz-16 kHz
• Limiter
• Threshold -56 dB to 0 dB / -28 dBFS
• Ratio x: 1
• Attack 20 ms
• Hold 10 ms
• Release 20 ms
• Compressor
• Threshold Range -56 dB to 0 dB
• Ratio 1: 1 to 14: 1
• Attack Time 0.2 ms to 150 ms
• Release Time 40 ms to 1000 ms
• Auto Attack and Release Attack = 10 ms, Release = 150 ms
• Curve Types hard and soft knee
• Parametric EQ
• Type 2nd-order shelving filter (Q = 0.55)
• Low (Lowpass or Bandpass) 36 to 465 Hz, ± 15 dB
• Low Mid 90 Hz to 1.2 kHz, ± 15 dB
• High Mid 380 Hz to 5 kHz, ± 15 dB
• High (Highpass or Bandpass) 1.4 kHz to 18 kHz, ± 15 dB
• Q 0.1 to 4 / Low Q = 0.55, Hi Q = 2.0
• Graphic EQ
• 31-Band 1 / 3rd Octave Controls Curve-fitting algorithm
• Gain / Attenuation ± 15 dB
• Digital Audio
• ADC Dynamic Range (A-wtd, 48 kHz) 118 dB
• DAC Dynamic Range (A-wtd, 48 kHz) 118 dB
• FireWire S800, 800 Mb / s
• Internal Processing 32-bit, floating point
• Sampling Rate 44.1, 48 kHz
• A / D / A Bit Depth 24
• Reference Level for 0 dBFS -18 dBu
• Clock
• Jitter <20 ps RMS (20 Hz - 20 kHz)
• Jitter Attenuation> 60 dB (1 ns in? 1 ps out)
• Power / Environmental
• Connector IEC
• Input-Voltage Range 90 to 240V, 50-60 Hz
• Power Requirements 200W
• Temperature Range 0? to 40? Celsius / 32? to 104? Fahrenheit
• Physical
• Length 21.31 inches (54.13 cm)
• Width (chassis only) 31.58 inches (80.21 cm)
• Maximum Height 7.02 inches (17.82 cm)
• Weight 50 lbs. (22.68 kg)
